| 브랜드 이름: | Jufeng |
| 모델 번호: | JF-10AT |
| MOQ: | 1 단위 |
| 가격: | contact |
| 포장에 대한 세부 사항: | 수출 나무 상자 포장 |
| 지불 조건: | t/t, d/p, d/a, l/c |

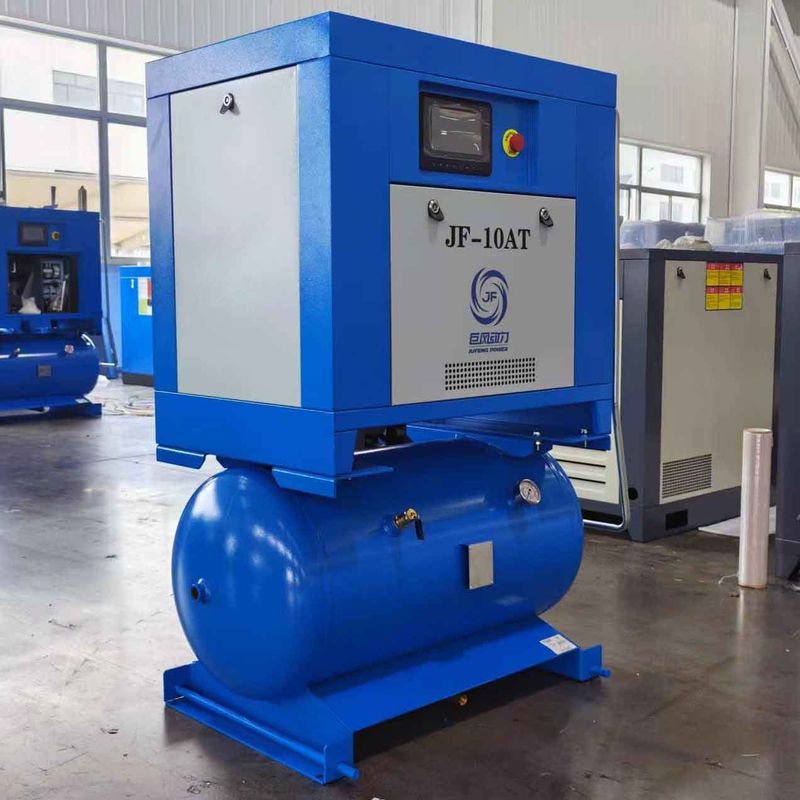

2-in-1 Integrated PM Screw Air Compressor with Air Receiver Tank
Introducing the innovative Permanent Magnet Variable Frequency Screw Air Compressor with Integrated Air Tank—a compact, efficient, and space-saving solution designed to meet your compressed air needs with exceptional performance and energy savings. This all-in-one unit combines a high-efficiency screw compressor with a built-in air storage tank, simplifying installation, reducing footprint, and optimizing air system performance.
Key Features:
Permanent Magnet Variable Frequency Motor: Delivers high efficiency, adaptive speed control, and significant energy savings (up to 30% compared to fixed-speed models), ensuring precise pressure matching to demand.
Integrated Air Tank: Eliminates the need for separate external tanks, saving space and reducing installation costs while providing stable air storage and immediate availability.
Compact Design: Perfect for facilities with limited space, the unified structure minimizes connections, lowers leakage risks, and enhances reliability.
Energy-Efficient Operation: The variable frequency drive (VFD) automatically adjusts motor speed based on real-time air consumption, reducing idle time and power waste.
Smart Control System: User-friendly interface for real-time monitoring, customizable pressure settings, and automated maintenance alerts for increased uptime.
| Model | JF-10AT |
| Tank | 200L |
| Power | 7.5kw |
| Exhaust volume | 1.2/1.1/0.9/0.75/0.65m³/min |
| Pressure | 7/8/10/12/13bar |
| Noise level | 64±2dB(A) |
| Wheel | Can be added |
| Motor protection grade |
IP23/IP54 or you need |
