Oil-Free High-Speed Maglev Centrifugal Air Compressor
Product introduction
Our Oil-Free High-Speed Maglev Centrifugal Air Compressor represents the future of industrial air compression. By integrating advanced magnetic bearing technology and a high-speed permanent magnet motor, it completely eliminates the need for lubricating oil, delivering 100% pure, oil-free air. This high-efficiency centrifugal compressor not only dramatically reduces energy consumption but also ensures near-zero maintenance, providing a lower total cost of ownership for demanding industries.
Product features
1. 100% Oil-Free Air, Guaranteed.
Benefit: Achieve ISO Class 0 air purity certification, eliminating the risk of product contamination. This is critical for sanitary applications in the Pharmaceutical, Food & Beverage, and Electronics manufacturing sectors.
2. Advanced Magnetic Levitation Bearing Technology.
Benefit: Our maglev centrifugal compressor features contact-free operation, which eliminates mechanical wear, reduces vibration, and removes the need for gearboxes and lubricants. This results in unparalleled reliability and a significant reduction in maintenance costs.
3. Exceptional Energy Efficiency & Variable Speed Drive.
Benefit: The integrated high-speed motor and variable speed drive (VSD) technology allow the compressor to match output exactly to air demand. This optimizes energy use, cutting energy costs by up to 30% compared to conventional lubricated screw compressors.
4. Ultra-Low Maintenance & Quiet Operation.
Benefit: With no oil, filters, gears, or mechanical wear parts to replace, maintenance is simplified to a minimum. Enjoy a low maintenance compressor that reduces operational downtime and costs. Its compact design and quiet operation make it ideal for integration into any facility.

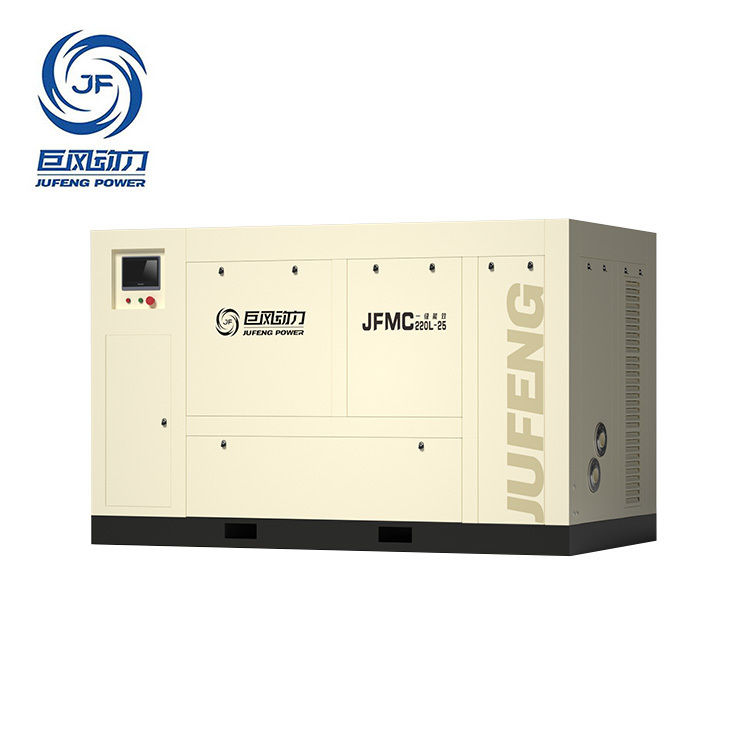

Product photo
Product parameters
| Model |
Rated power kw |
Discharge pressure kPa |
Inlet flow rate m³/min |
Flow regulation range |
| JFMC120L-25 | 120 | 250 | 40 | 65%~100% |
| JFMC120L-30 | 300 | 35 | 65%~100% | |
| JFMC120L-35 | 350 | 32 | 65%~100% | |
| JFMC160L-20 | 160 | 200 | 63 | 65%~100% |
| JFMC160L-25 | 250 | 52 | 65%~100% | |
| JFMC160L-30 | 300 | 48 | 60%~100% | |
| JFMC160L-35 | 350 | 45 | 70%~100% | |
| JFMC220L-20 | 220 | 200 | 85 | 65%~100% |
| JFMC220L-25 | 250 | 75 | 60%~100% | |
| JFMC220L-30 | 300 | 65 | 70%~100% | |
| JFMC220L-35 | 350 | 60 | 65%~100% | |
| JFMC300L-20 | 300 | 200 | 112 | 65%~100% |
| JFMC300L-25 | 250 | 98 | 55%~100% | |
| JFMC300L-30 | 300 | 90 | 65%~100% | |
| JFMC300L-35 | 350 | 80 | 65%~100% | |
| JFMC350L-20 | 350 | 200 | 135 | 60%~100% |
| JFMC350L-25 | 250 | 118 | 60%~100% | |
| JFMC350L-30 | 300 | 108 | 60%~100% | |
| JFMC350L-35 | 350 | 98 | 65%~100% | |
| JFMC450L-20 | 450 | 200 | 170 | 50%~100% |
| JFMC450L-25 | 250 | 152 | 55%~100% | |
| JFMC450L-30 | 300 | 140 | 70%~100% | |
| JFMC450L-35 | 350 | 125 | 75%~100% | |
| JFMC220H-80 | 220 | 800 | 45 | 50%~100% |
| JFMC315H-80 | 315 | 800 | 60 | 50%~100% |
| JFMC400H-80 | 400 | 800 | 75 | 50%~100% |
| JFMC550H-80 | 550 | 800 | 100 | 50%~100% |
| JFMC750H-80 | 750 | 800 | 135 | 50%~100% |
