| 브랜드 이름: | Jufeng |
| 모델 번호: | JF-050 |
| MOQ: | 1 unit |
| 가격: | contact us |
| 포장에 대한 세부 사항: | wooden case |
| 지불 조건: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Jufeng 0.7-16MPa 6.5m³/min Refrigerated Air Dryer
Product introduction
The JF-050 Refrigerated Air Dryer is designed to deliver ISO 8573-1 Class 4 compressed air by effectively removing moisture, oil aerosols, and contaminants. Ideal for industrial applications requiring 6.5 m³/min flow at 16 bar, it ensures reliable performance with 3°C dew point to protect downstream equipment from corrosion and operational downtime.

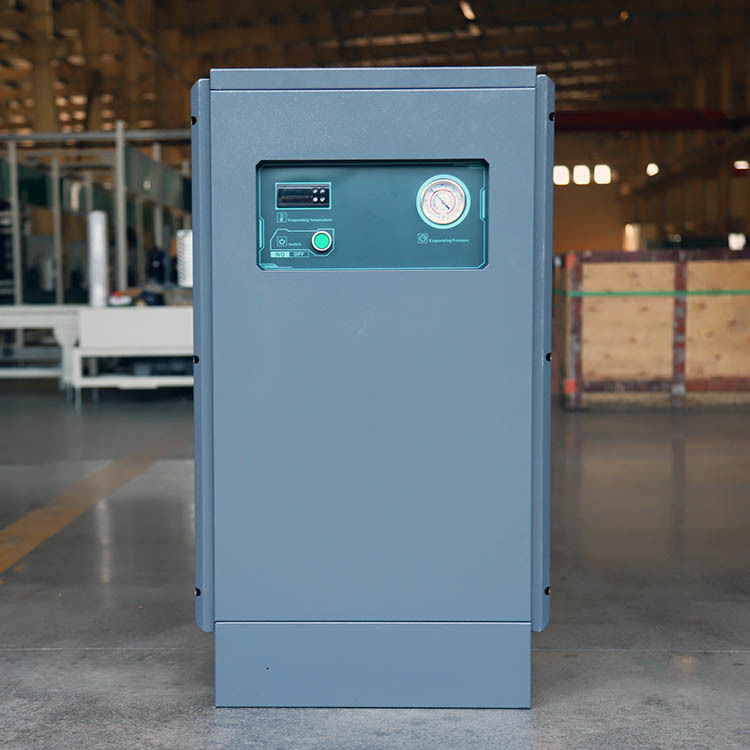

Product photo
Product parameter
| Air handling capacity | 6.5m³/min | |
| Compressed air inlet pressure | 7~16 bar | |
| Air inlet temperature | ≦ 60℃ | |
| Standard ambient temperature | 1~38℃ | |
| Pressure dew point | 2-10℃ | |
| Pressure loss | ≦ 0.018Mpa | |
| Drain valve | Electronic automatic drain valve | |
| Cooling method | Air cooling | |
| Power supply V/PH/Hz | 110VAC 60Hz 1P | |
| Machine power | 1.68kw | |
| Compressor power | 1.52kw/60Hz | |
| refrigerant | R410A | |
| Inlet and outlet interface size | G1-1/2" | |
| Dimensions(l*w*h) | 860mm × 530mm × 960mm | |
| Net weight | 49.2kg | |
